Info Techniques Sur  Support de Chasse d'Eau de Coin (52C)

Info Techniques Sur Support de Chasse d'Eau de Coin (52C)

Informations sur l'installation et technique sur la citerne de coin toilette et cadre suspendu. Cette citerne de toilette caché est conçu pour suspendues au mur des toilettes peuvent être facilement et en toute sécurité installés dans le coin d'une salle de bains.

Voir la description complète
PRODUCT IDENTIFICATION
Corner toilet cistern with installation hanging frame (52C) for fitting of wall hung wc into corner situations. This hidden cistern has Double chasse mechanical actuated cistern with anti-condensation insulation cover.

APPLICATIONS
Particularly suitable for special installations:
- Technical rooms and ducts.
- Corner installation (supplied with Réglable corner brackets)

TECHNICAL CISTERN FEATURES
- Double chasse.
- Installation facile.
- Easy access for maintenance.
- Polypropylene (PP) cistern highly resistant and inalterable to thermal stress.
- Silent COMPACT float valve certificated according to the NF standard category Class I
- Certifié cistern according NF standards.
- CE EN 14055 marking CL1
- A class for the Energy Efficiency in compliance with the ANQIP Authority requirements.

WORKING CHARACTERISTICS
- 2 flushes volumes 3 litre (half flush) and 6 litre (full flush)
- Working pressure from 0,2 to 20 bar.
- Resistance to atmospheric humidity (Hr <90%).

ACCESSORIES EQUIPMENT
- 1 PHED discharge pipe bend
- 1 PP protection box
- 1 protection plug Ø90
- 1 protection plug Ø45
- 1 PP connecting sleeve Ø45
- 1 PP connecting sleeve Ø90
- 1 Stop-valve (factory pre-assembled)
- 1 Protection sponge for the stop valve

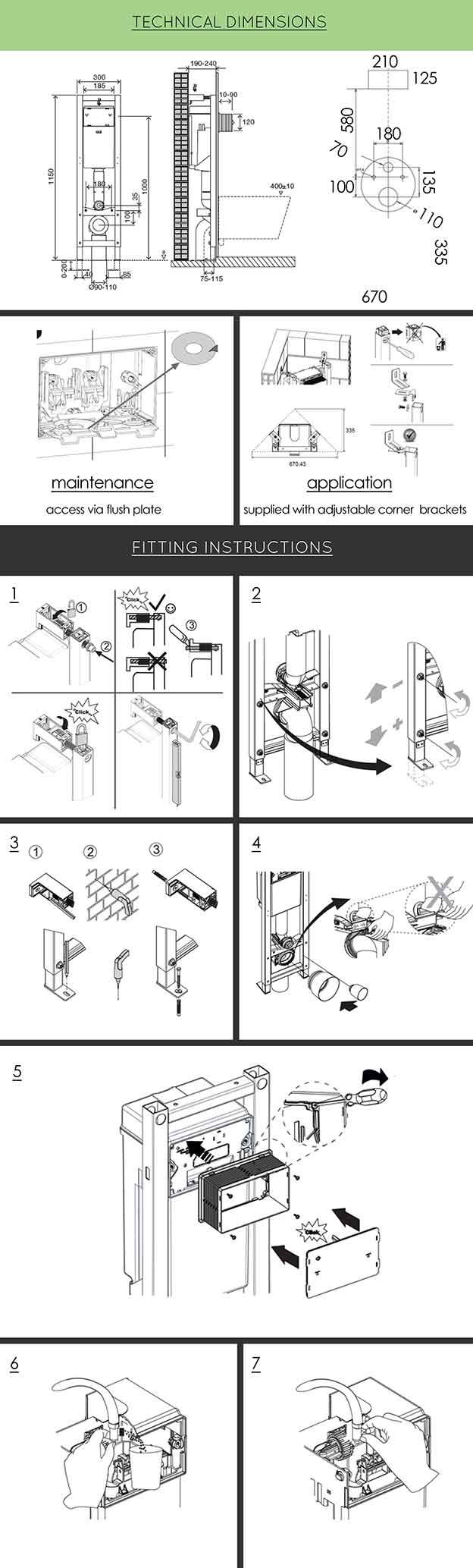

- 1 mounting instructions
Accessoires de fixation pour structure murale:
- 4 galvanized screws M8x60
- 4 galvanized washers M8 DIN 9021
- 2 Fixation ajustement rapide
Fixing accessories for toilet bowl mounting on the structure:
- 2 threaded rods M12
- 2 nuts M12
- 2 protection for threaded rod.
- 2 protection cover.
- 2 Toilet centering washer.
- 2 Washers Zn ø 34

PROPRIÉTÉS
- Régulation en hauteur des supports de plancher réglables (0-200 mm);
- Profondeur regulation of the Réglable discharge pipe bend.
- Système de fixation facile.

RESISTANCE À LA FATIGUE
400 kg static weight load supported provided that the installation must be workmanlike performed.

MAINTENANCE
It is possible to access inside of the cassette quickly and easily, without the need for particular equipment, using the spare parts fixed to the anti-condensation plaque is possible to replace the deteriorated components.

GARANTIE
Cistern:
Garantie de dix ans (10 ans) Selon les conditions générales de vente, La garantie commence à partir de la date d'achat des produits. If theproduct is not correctly installed the warranty is not valid.

Push Plate:
Two years warranty (2 years) Selon les conditions générales de vente, La garantie commence à partir de la date d'achat des produits. If theproduct is not correctly installed the warranty is not valid.

INFO
For further information please consult www.Livinghouse.co.uk
