Info Techniques Sur  Chasse d'Eau Super Mince (52E)

Info Techniques Sur Chasse d'Eau Super Mince (52E)

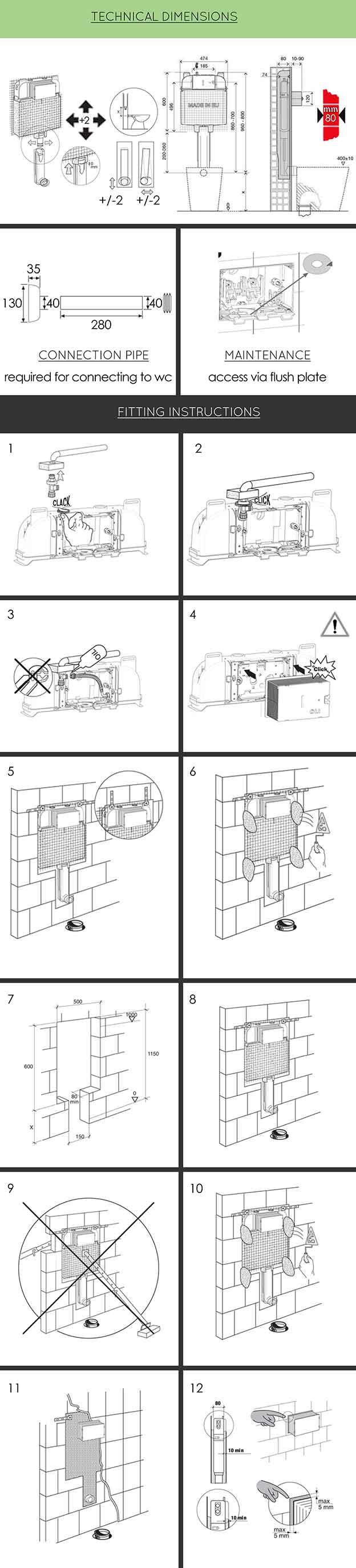

Cliquez ici pour des informations techniques et installation sur la citerne de toilettes dissimulé Super Slim conçu pour revenir aux toilettes murales. Ces citernes minces peuvent être installés en face d'un mur existant de chaussé dans un mur à ossature de bois permettant d'économiser plus d'espace.

View Full Description
PRODUCT IDENTIFICATION
Super slim cistern kit (52G) Double chasse mechanical actuated cistern with net and anti-condensation cover. An air conversion kit is supplied for pneumatic flush plates.

APPLICATIONS
- Installation dans des murs de maçonnerie with reduced Profondeur.
- Front wall installation.
- Adapté aux projets de rénovation.
TECHNICAL CISTERN FEATURES
- Chasse d'eau double réservoir.
- Polypropylene (PP) cistern highly resistant and inalterable to thermal stress.
- reduced Epaisseur of 80 mm
- Installation facile.
- Easy access for maintenance.
- Eas flush volume adjustment (Fast Adjustment System)
- Anti-condensation EPS - Polystyrene cover plate (total Epaisseur of 80 mm)
- Special fiber net for cement grip.
- Waste pipe with Polystyrene (EPS) cover to provide incidental mistakes during installation and to reduce noise during flush.
- Silent AZOR float valve certificated according to the NF standard category Class 1
- Certifié cistern according KIWA/SABS/SAI/WRAS standards.
- CE EN 14055 marking CL1
- “A” class for the Energy Efficiency in compliance with the ANQIP Authority requirements.

WORKING CHARACTERISTICS
- 2 flushes volumes 3 litre (half flush) and 6 litre (full flush)
- Working pressure from 0,2 to 20 bar.
- Resistance to atmospheric humidity (Hr <90%).

ACCESSORIES EQUIPMENT
- 1 PP discharge pipe Ø56 360 mm length
- 1 Rubber seal for flush pipe Ø40 / Ø45;
- 1 Protection plug for tube.
- 1 Stop-valve with positioning ring.
- 1 Protection sponge for stop valve.
- 1 PP protection box.
- 2 Fixing metal brackets with screws for wall mounting.
- Installation instructions.

REMARKS
The installation of the cistern requires mounting of a connecting pipe to the WC.

MAINTENANCE
It is possible to access the inside of the cistern quickly and easily, without the need of special equipment, using the spare parts fixed to the anti condensation plaque is possible to replace the deteriorated components.

WARRANTY

Cistern:
Garantie de dix ans (10 ans) Selon les conditions générales de vente, La garantie commence à partir de la date d'achat des produits. Si le produit n'est pas correctement installé, la garantie n'est pas valide.

Push Plate:
Two years warranty (2 years) Selon les conditions générales de vente, La garantie commence à partir de la date d'achat des produits. Si le produit n'est pas correctement installé, la garantie n'est pas valide.

MORE INFO
Pour plus d'informations, veuillez téléphoner au 01722415000
